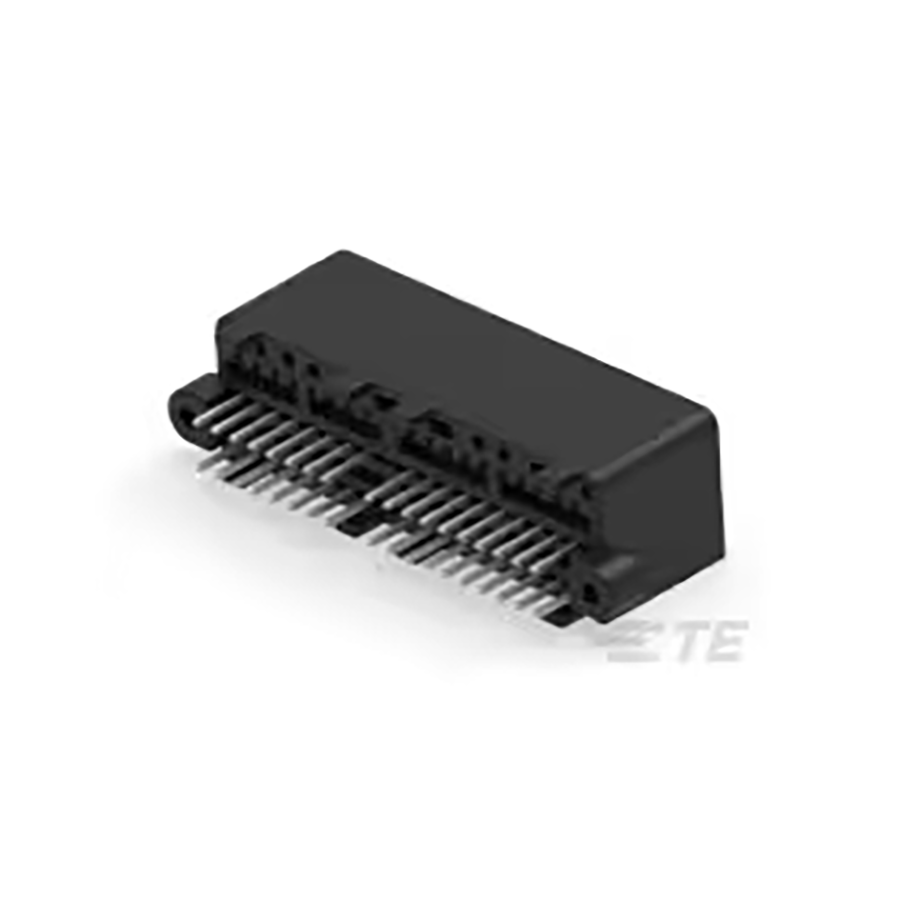

175977-2
Manufacturer:
TE Connectivity
Mfr.Part #:
175977-2
Datasheet:
Description:
Automotive Connectors Through Hole Number of Positions:36
| Parameter | Value |
|---|---|
| Length | 16.891 mm |
| Width | 61 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Bulk |
| Depth | 16.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94HB |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Shielding | Unshielded |
| Number of Contacts | 36 |
| ELV | Compliant |
| Tab Width | 1 mm |
| Connector Type | Receptacle, Tab |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Row Spacing | 5.207 mm |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 7.0104 mm |
| PCB Thickness | 1.6 mm |
| Contact Gender | Female |
| Tab Thickness | 640 µm |
| Number of Signal Positions | 36 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 117
Distributors
pcbx
pcbxUnit Price$2.28240
Ext.Price$2.28240
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.28240 | $2.28240 |
| 10 | $1.95830 | $19.58300 |
| 25 | $1.81687 | $45.42175 |
| 50 | $1.68566 | $84.28300 |
| 100 | $1.56393 | $156.39300 |
| 300 | $1.51576 | $454.72800 |
| 500 | $1.46907 | $734.53500 |
| 1000 | $1.42774 | $1427.74000 |
